30 W PD 1C GaN 解决方案-HYSEMi

30 W PD 1C GaN 解决方案

HYC3607H + HY923D + HY5311 + HYM10N07

Application Details

Application Description

HYC3607H + HY923D + HY5311 + HYM10N07

Application Diagram

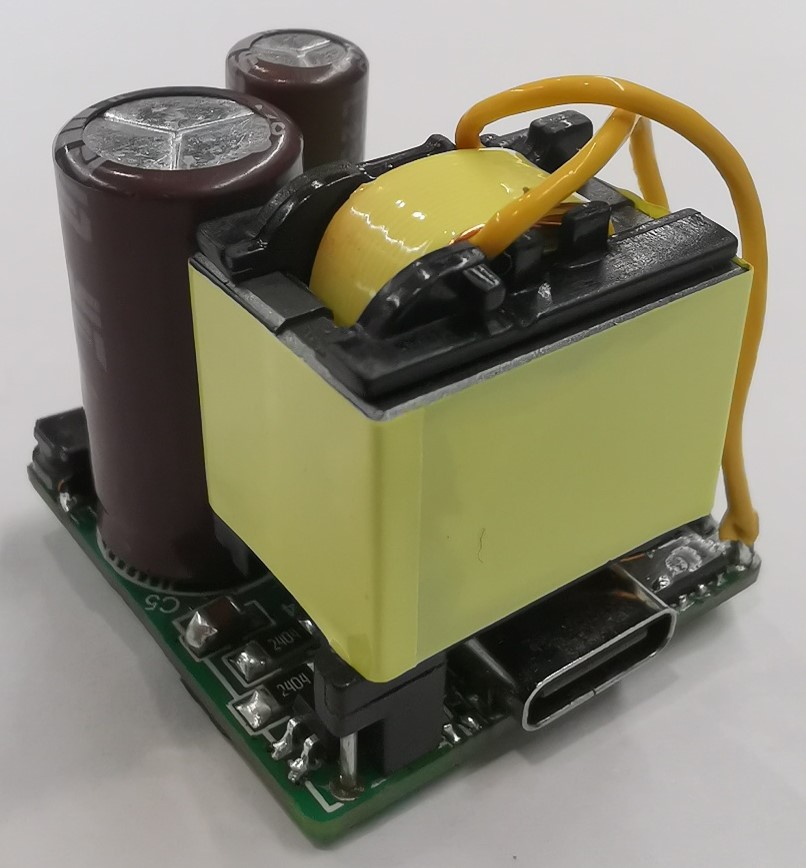

实体图

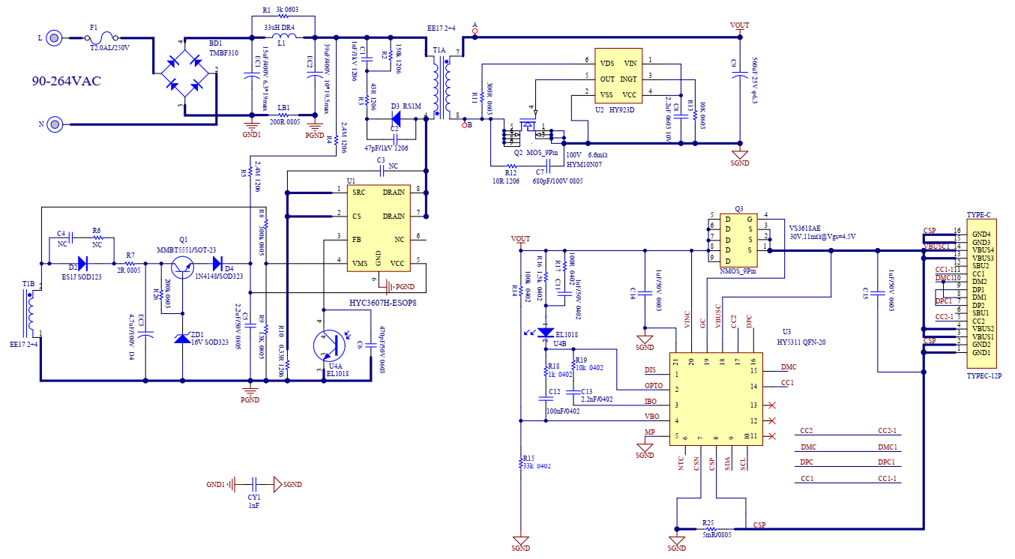

Sch

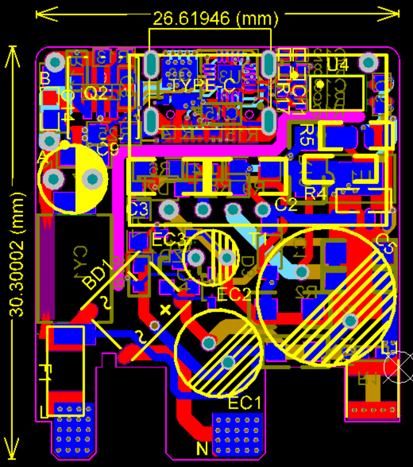

PCB Top (Components)

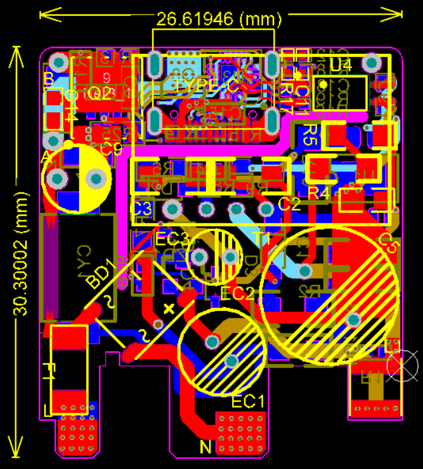

PCB Bottom (Solder)

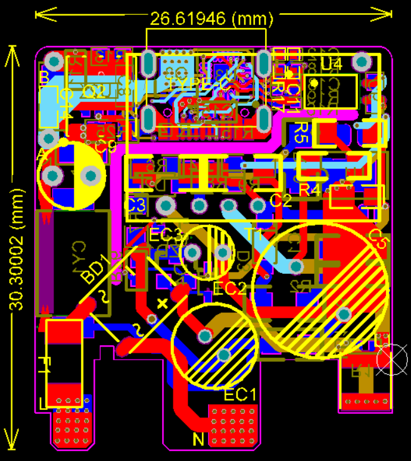

PCB Mid 1

PCB Mid 2
